Product Details:
Payment & Shipping Terms:
|
| Coding: | E & F | Color: | Leaf Green; Nut Brown |
|---|---|---|---|
| Cable Type: | RG 178; RG316; RG 174 | Connector: | SMB Connector Female |
| Impedance: | 50 OHM | ||
| Highlight: | coax cable assembly,usb Connector Assembly |
||

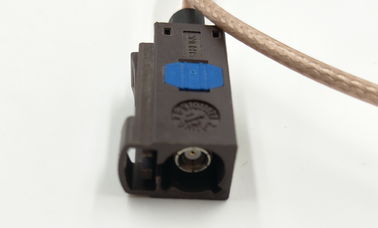

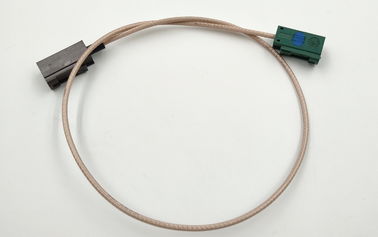

Fakra Connector Code E to Fakra Code F SMB Female RG 178 Cable
General Features:
1. Color coded and keyed shrouds: Prevents mis-mating and helps guide proper connection
2. Designed for automotive telematics applications: Meets USCAR specifications
3. Frequency DC to 4 GHz: Ideal for wireless and GPS applications
Applications:
1. Aerospace and Defense: GPS
2. Automotive: Audio, navigation, infotainment, Bluetooth, GPS
3. Commercial Vehicle: Audio, navigation, infotainment, Bluetooth
4. Consumer: GPS
5. Smart Phones and Mobile Devices: GPS
6. Telecommunications: Bluetooth, GPS tracking, positioning and navigation devices
Specification:
| Electrical | |
| Frequency | DC ~ 4 GHz |
| SWR | <=1.5 |
| Impedance | 50 OHM |
| Dielectric Withstanding Voltage | 1000 VRMS |
| Insulation Resistance | 1000 MΩ min |
| Contact Resistance (Center Contact) | <20 mΩ |
| Contact Resistance (Out Contact) | < 10 mΩ |
| Insertion Loss | < 0.3 dB |
| Mechanical | |
| Mating Durability | 100 mating cycles min |
| Plastic Housing Engagement Force | |
| Engagement | 20 N |
| Disengagement | 25 N |
